Information

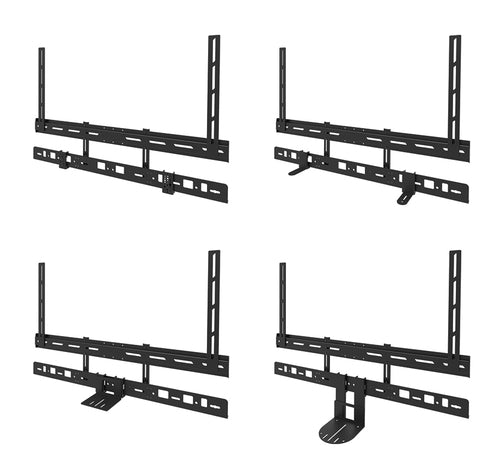

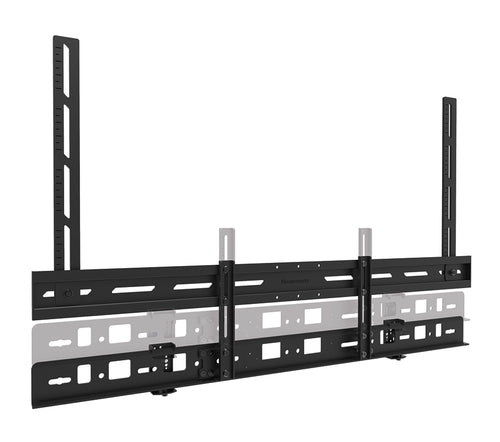

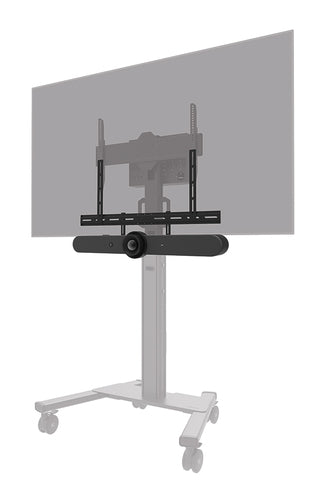

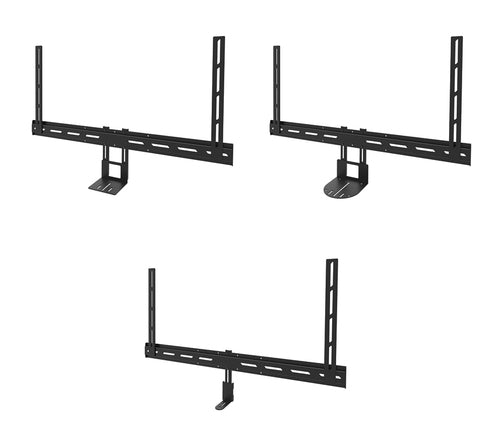

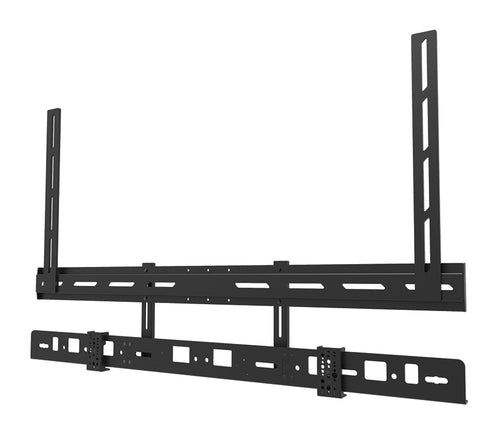

The Neomounts AV30-500BL is a universal videobar kit designed for displays from 43\" and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 10 kg and can be installed either above or below the screen. Both the videobar support and the backplate brackets are height-adjustable for maximum flexibility.

Compatible with most videobars*, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV30-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit can be used on wall, floor, desk, or ceiling mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

* The Neomounts AV30-500BL videobar kit is truly universal, compatible with any videobar regardless of brand or model, provided it fits within the bracket?s range (see line drawing). In addition, the kit is specially designed for the following videobars:

- Bose Professional VB1 and VB-S
- Neat Bar (gen 1, gen 2) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 50/40
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Neomounts AV30-500BL TV mount accessory

Name: Neomounts AV30-500BL TV mount accessory
Brand: Neomounts
SKU: AV30-500BL
Price: 74.07 GBP
Availability: InStock

£74.07 GBP

£74.07 GBP ~~£92.59 GBP~~

Taxes and Shipping calculated at checkout.

Neomounts AV30-500BL Videobar kit 43-110\" - VESA - max 10 kg - universal, Videobar mount, 200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x..., 109.2 cm (43\"), 2.79 m (110\"), 10 kg, 0 - 55 mm

Vendor: Neomounts

Type: TV Mount Accessories

Available stock: 26

★

Free Shipping over £400

Estimated delivery: Oct 20 - Oct 24

Information

The Neomounts AV30-500BL is a universal videobar kit designed for displays from 43\" and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 10 kg and can be installed either above or below the screen. Both the videobar support and the backplate brackets are height-adjustable for maximum flexibility.

Compatible with most videobars*, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV30-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit can be used on wall, floor, desk, or ceiling mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

* The Neomounts AV30-500BL videobar kit is truly universal, compatible with any videobar regardless of brand or model, provided it fits within the bracket?s range (see line drawing). In addition, the kit is specially designed for the following videobars:

- Bose Professional VB1 and VB-S
- Neat Bar (gen 1, gen 2) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 50/40
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Features
Product type	Videobar mount
Panel mounting interface	200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Minimum screen size	109.2 cm (43")
Maximum screen size	2.79 m (110")
Maximum weight capacity	10 kg
Number of displays supported	1
Height adjustment range	0 - 55 mm
Product colour	Black
Housing material	Steel
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 year(s)
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	193 mm
Height	555 mm
Weight	5.7 kg
Packaging data
Package width	175 mm
Package depth	958 mm
Package height	86 mm
Package weight	7.1 kg
Package type	Box
Logistics data
Master (outer) case net weight	17.1 kg
Products per pallet (EU)	48 pc(s)
Master (outer) case width	276 mm
Master (outer) case length	979 mm
Master (outer) case height	195 mm
Master (outer) case gross weight	21.9 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
